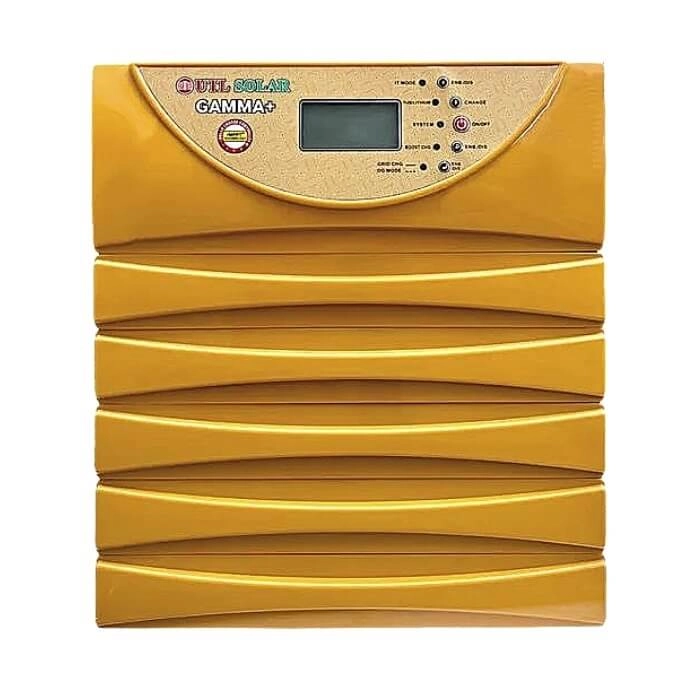

UTL GAMMA+ 3350 24V SOLAR PCU

Gamma + PCU (Power Conditioning Unit) is an integrated unit consisting of a grid charger, inverter, and MPPT Solar Charger. It continuously monitors Battery and Solar voltage as well as Grid and Output voltage with their currents. MPPT-based solar charger extracts the maximum power from the solar panels whereby it increases the efficiency of the system. MPPT charger has multistage charging which maintains the battery charging voltage such that it increases the lifespan of the battery

Features:

• High Power Inverter with MPPT Integration: 30V-105V Voc and supports panel up to 2160W & this combination assures continuous daytime heavy load operation without battery disturbance.

• Standby zero grid power consumption: Once the battery is fully charged frequent relay-controlled isolation of grid power from the charging transformer ensures standby zero grid power consumption saving electricity.

• Selectable solar/grid priority charging: Helps customer to select charging mode as to the power conditions of the site

• Customer control over grid charging ON/OFF: Blocks battery charging from grid power saving electricity

• Multicolour LCD front panel display: Gives detailed and clear system information at a look

• Intelligent true multi-stage smart solar and grid charging: Bulk, Absorption, Float (User selectable battery charging voltage) Ensures prolonged battery backup and life

• Customizable solar and grid priority modes: Helps customer to set the power conditions of the site

• All types of battery compatibility: Supports tubular lead acid, flat, SMF, Gel, local batteries and branded: Lithium batteries with BMS and active balancer

SPECIFICATIONS:

Contents:

1x UTL Gamma+ 3350 24V MPPT Solar Pcu
