Ashapower MPPT Solar Charge Controller NEON 80 LV : 12/24/36/48V : 80A ( VoC Upto 165V )

Rs. 14,950.00 Rs. 16,900.00 -12% OFF

Ashapower MPPT Solar Charge Controller NEON 80 LV : 12/24/36/48V : 80A ( VoC Upto 165V )

Rs. 14,950.00 Rs. 16,900.00 -12% OFF
0 LEFT IN STOCK

Expected Delivery Time 3 and 5.

0 watching this item.
Product description

This product converts an existing ups / inverter into a solar hybrid inverter. The charge controller is built on MPPT Technology, the current rating capacity is 80 Amps and voltage rating is 12-24-36-48 volt. (means, it can be used to convert 12V, 24V, 36V & 48V inverters to Solar PCU)

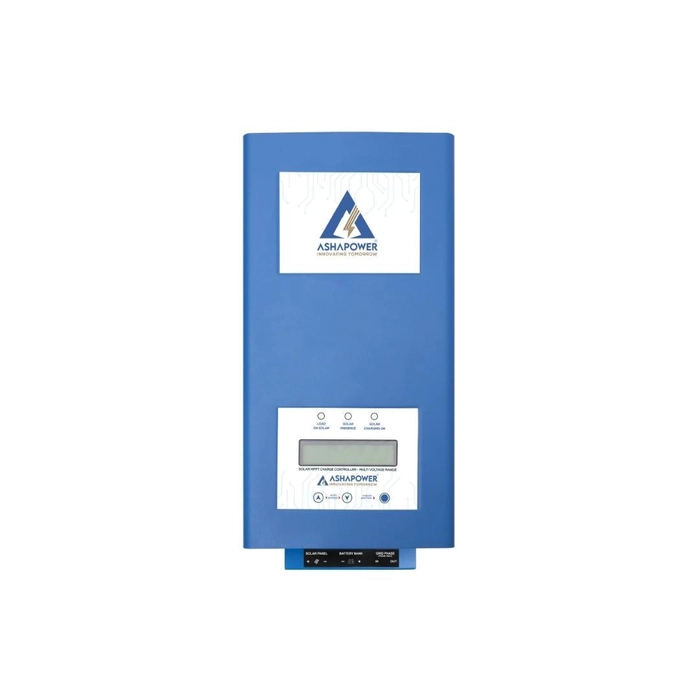

ASHAPOWER® NEON-80 LV Vers. 7.5 MPPT charge controller is a multi-voltage range device with unique features. The same device can be used for charging 1 battery (12V ) to a battery bank of 4x12V(48V) in series. The device automatically detects and configures itself to the connected battery bank. The high Voc range (open circuit voltage) of the device makes it easier to group the PV panels conveniently. The maximum power point tracking (MPPT) technology of the charge controller optimizes the maximum power production from the connected PV panel array.

  • Compatible for 12V/24V/36V/48V battery bank
  • Auto-detection and self setting of battery bank
  • 4 stage smart charging for prolonged battery life (Bulk-Absorption-Float-Equalization)
  • Programmable Initial limited ampere battery charging facility
  • Ultra-fast & efficient power point tracking(98.9%)
  • dsPIC33EP family micro controller based devices
  • PV panel reverse polarity protection
  • Automatic disconnection of PV panels at night
  • Over voltage and overload protection from PV panels
  • Protection for battery against hardware failures

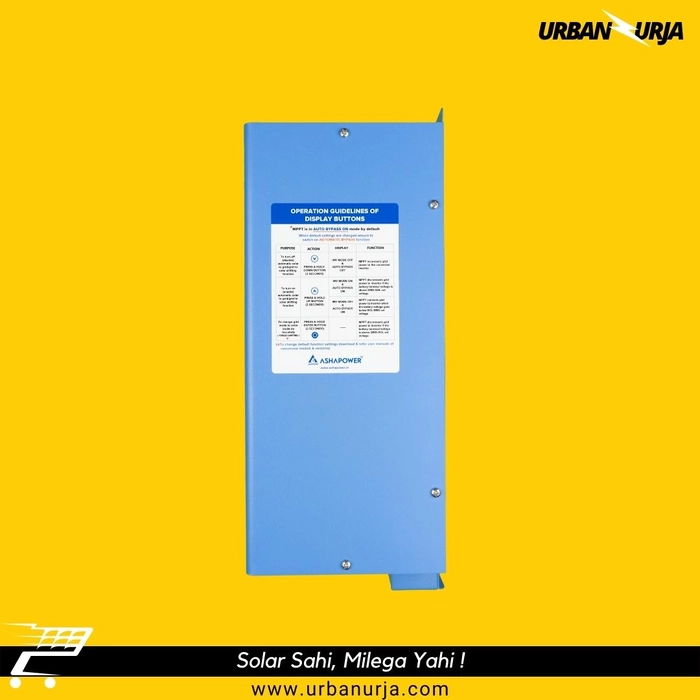

  • 14 menu user programmable function settings and inbuilt settings keys
  • Grid power control to the connected inverter (SMU-Solar Management Unit)
  • Forced grid to solar shifting facility
  • Multifunction status display

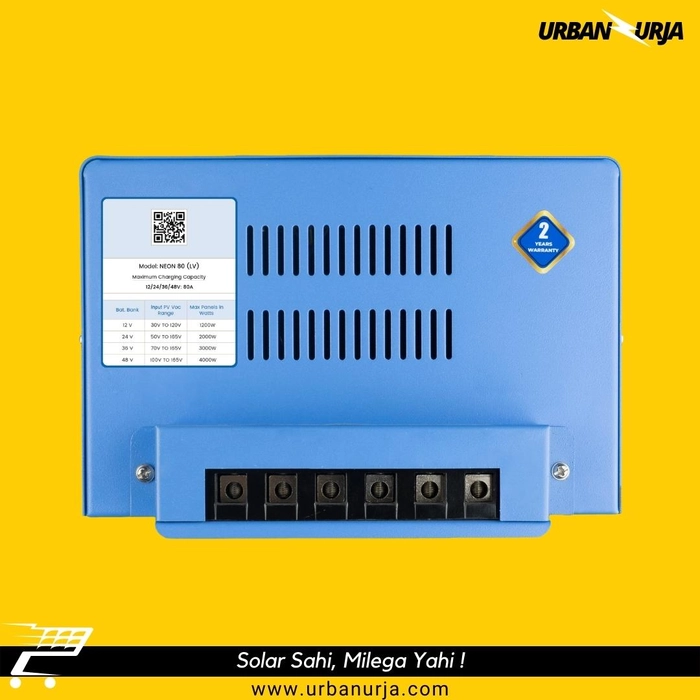

Specifications:

Battery Volt
Max PV Voltage Range (VoC)
Max PV Panels Supported (in Watts) Max PV Panels Supported (in Watts)

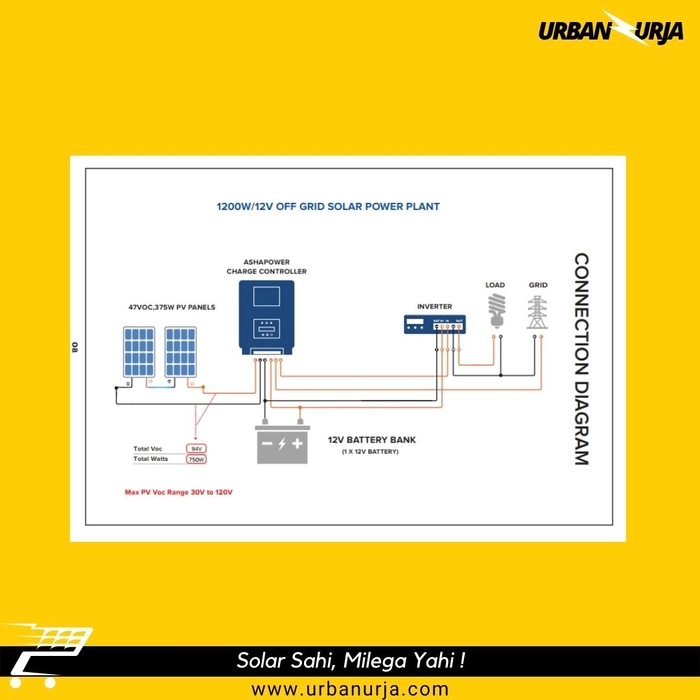

12V
30-120V

47 VOC (375W PANEL) X 2 PANEL IN SERIES = 94 VOC =750W


36 VOC (260W PANEL) X 3 IN SERIES = 108 VOC = 780W

1200W

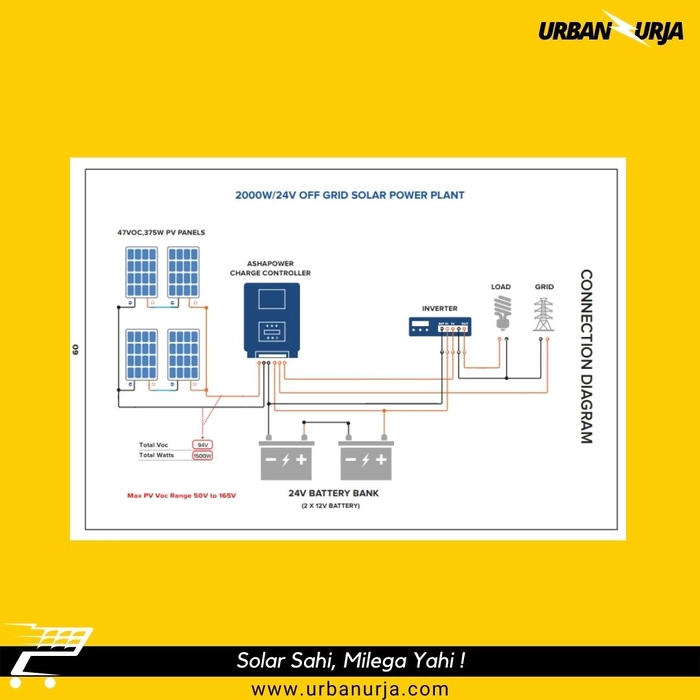

24V
50-165V


47 VOC (375W PANEL) X 2 IN SERIES = 94 VOC = 750W X 2STRINGS IN PARALLEL = 1500W

2000W
36V
70-165V
47 VOC (320W PANEL) X 3 IN SERIES = 141 VOC = 960WX 3STRINGS IN PARALLEL = 2880W 3000W

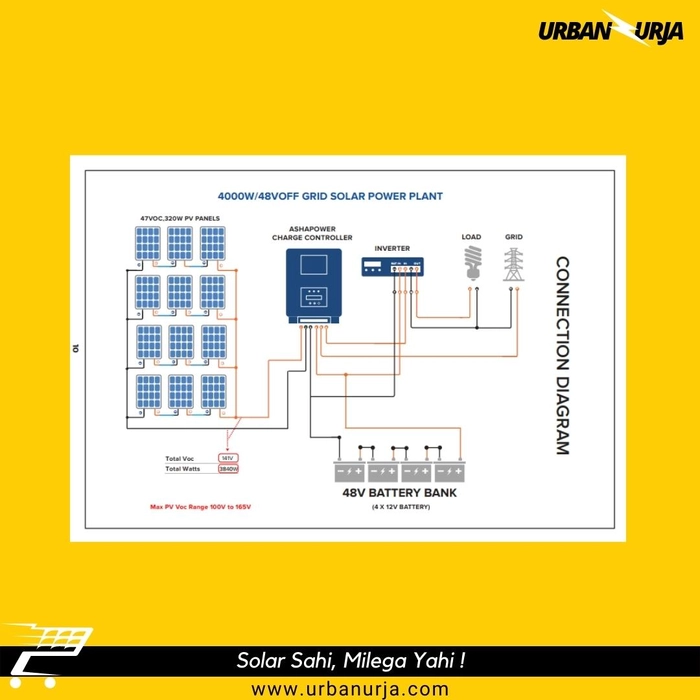

48V
100-165V

47 VOC (320W PANEL) X 3 IN SERIES = 141 VOC = 960W X 4STRINGS IN PARALLEL = 3840W

4000W



User Manual: Download

Contents: 1x AshaPower NEON 80LV
